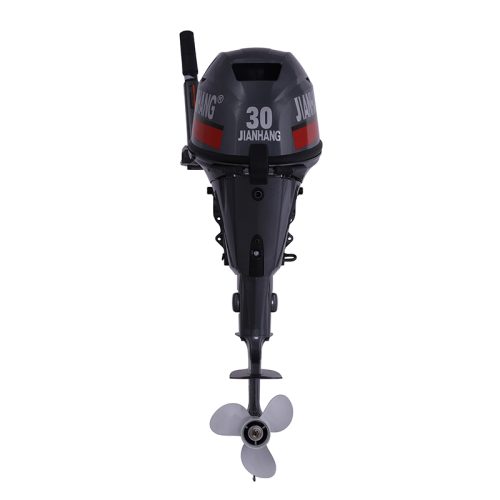

30HP Four Stroke Outboard Motor

30hp Four Stroke Outboard Motor

Model: F30(B/F)(M/W)S F30(B/F)(M/W)L

High-performance 30hp four stroke outboard motor for fishing boats and work boats. Reliable marine engine with strong thrust and fuel efficiency.

MAX OUTPUT
22.1 （30）@5500 KW(HP)@r/min
WEIGHT
52.0 kg ；L:54.0kg
DISPLACEMENT
496 cm³
FUEL TANK
24 L(litre)
INQUIRY NOW download icon MANUAL
CE icon CE CERTIFIED ISO icon ISO 9001 OEM icon OEM AVAILABLE
PRODUCT HIGHLIGHTS

KEY FEATURES

01

Powerful 30HP Output

Provides strong thrust for larger boats and heavier loads.

02

Smooth Engine Operation

Balanced engine structure reduces vibration and noise.

03

Fuel Efficient Performance

Optimized fuel system lowers operating costs.

04

Reliable Ignition System

Advanced CDI ignition ensures quick and stable engine starting.

05

Heavy-Duty Marine Design

Durable construction suitable for demanding marine environments.

COMPLETE DATA

TECHNICAL SPECIFICATIONS

Model F30(B/F)(M/W)S
F30(B/F)(M/W)L
Overall Length 1048mm
Overall Width 420mm
Overall Height S：1080mm
L：1205mm
Transom height S:440mm
L:565mm
Net Weight S:52.0kg ；L:54.0kg
Full throttle operating range 5000～6000r/min
Maximum output 22.1（30）@5500 KW(HP)@r/min
Idling speed 1000～1100r/min
Cylinders 2
Displacement 496cm³
max.fuel consumption 7.1L/h
Bore×Stroke 64×58.1mm
Control system Tiller
Starting System Manual
Gear positions F-N-R
Gear ratio 2.08（27/13）
Trim and tilt system Manual tilt
Fuel tank capacity 24L(litre)
Fuel 92#
Engine oil capacity 1.8L(litre)
ignition system CDI
Cooling system water-cooling
Gear oil capacity 250ml
Propeller spec. 3-9 1/4″×8″ -G or
3-9 1/4″×12″-G
Packing size S：1260*765*525mm
L：1410*765*525mm

APPLICATION SCENARIOS

BUILT FOR EVERY MISSION

It is ideal for commercial fishing, water patrol, rescue operations, and recreational boating.

Person fishing from inflatable boat

Medium-sized fishing boats

Medium-sized fishing boats with stable performance, suitable for offshore and inland fishery operations.

Rescue team on inflatable boat

Patrol boats

Designed for water patrol and law enforcement, powerful and flexible for security and alert duties.

People on boat in scenic lake

Inflatable rescue boats

Light inflatable rescue boats with high safety for water search, rescue and emergency transfer.

Commercial boat at dock

Leisure boats

Comfortable leisure boats for family outings, water entertainment and short-distance sightseeing.

Commercial boat at dock

Transport boats

Used for water transport of personnel and goods, stable and spacious for inland and coastal transfer.

COMMON QUESTIONS

FAQ

Q1

Is 30HP suitable for commercial fishing boats?

Yes. Many fishermen choose 30HP outboard motors for reliable propulsion and efficiency.

Q2

Does the engine support electric start?

Yes. Manual and electric start options are available depending on configuration.

Q3

Yes. Manual and electric start options are available depending on configuration.

Regular maintenance includes engine oil change, gear oil inspection, and cooling system check.
